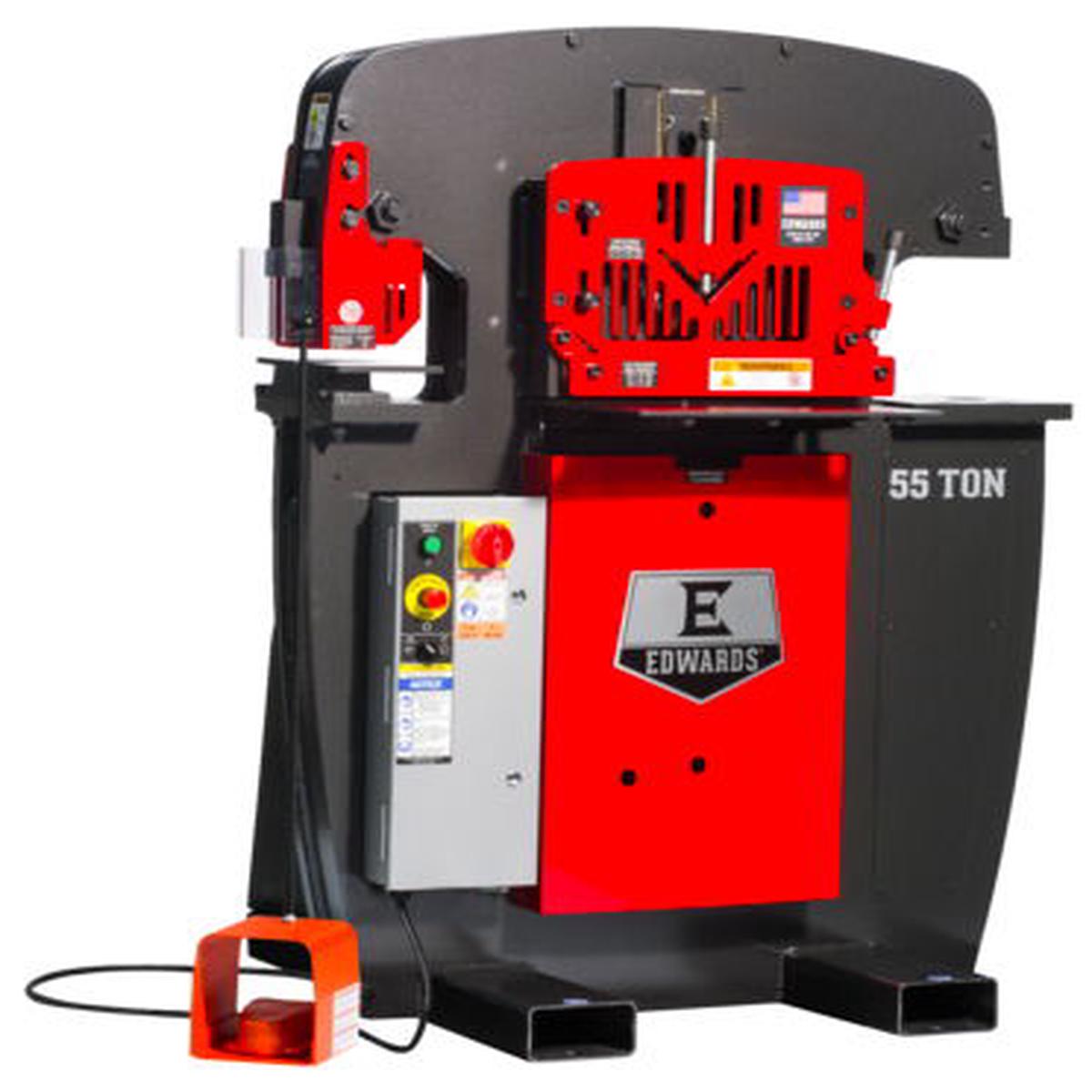

IW55-3P208, Edwards 55 Ton Ironworker 3 PH, 208V

The Edwards 55 Ton JAWS Ironworker is well suited to fit the needs of any fab shop, large or small. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a universal open tooling station designed to accept optional Tooling Accessories.

The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.

Features:

• Four Available Workstations
• Universal Open Tooling Station
• Electric Stroke Control
• ANSI B11.5-1988R(02) Compliant
• ETL/UL Approved Controls

Specifications:

PUNCH

• Rating 55 Tons
• Max. Capacity 1-1/16″ Dia. in 5/8″ A36 (65,000 PSI Tensile)
• Stroke 1-1/4″
• Throat Depth 7-1/2″
• Open Height 8-1/8″
• Shut Height 6-7/8″
• Work Height 36-9/16″

FLAT BAR SHEAR

• Max. Capacity 3/8″ x 14″ 1/2″ x 12″ 3/4″ x 4″
• Max. Round 7/8″
• Max. Square 7/8″
• Work Height 34-1/2″

ANGLE SHEAR

• Max. Capacity 3″ x 3″ x 3/8″ 4″ x 4″ x 1/4″
• Work Height 39-7/8″

OPTIONAL COPER NOTCHER

• Max. Capacity 2-1/2″ x 4″ x 5/16″
• Work Height 39-1/2″

OPEN STATION

• Throat Depth 11-3/16″
• Open Height 8-1/8″
• Shut Height 6-7/8″
• Stroke 1-1/4″
• Work Height 34-1/2″

GENERAL SPECIFICATIONS

• Standard Motor 5 HP 3~ 208 V or 230 V 1725 RPM 14 A
• Optional Motors 5 HP 3~ 460 V 1725 RPM 7 A
• 5 HP 3~ 575 V 1725 RPM 6 A
• 5 HP 1~ 230 V 1725 RPM 23 A
• Hydraulic Pump 3-1/2 GPM – 1 Stage
• Valve Pressure 2500 PSI
• Reservoir 7 Gallons
• Cylinder 2-1/2″ Ram

DIMENSIONS

• Height 55-1/4″
• Width 44-3/8″
• Depth 36-1/8″
• Shipping Weight 2480 lb
