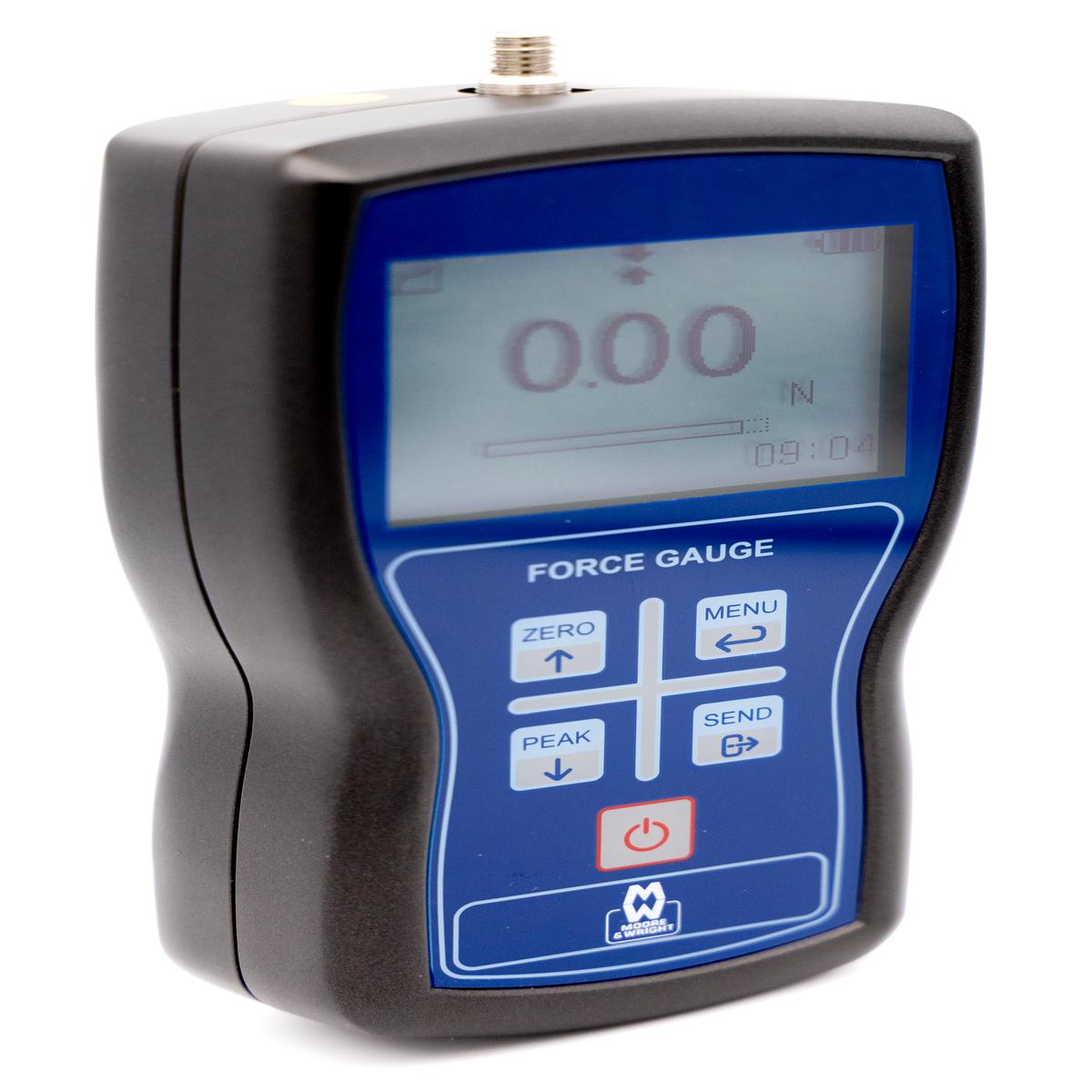

Force Gauge 0-200N 0.2% MWT-8140

This compact and user-friendly handheld digital compression force gauge from Moore & Wright features an intuitive and clear digital display, as well as an advanced microprocessor ensuring high accuracy compressive and tensile force testing.

Featuring a compact durable metal housing with threaded holes for mounting to a frame. Models cover a variety of different ranges and resolutions. Each is supplied with a selection of measuring heads to contact the object under test, including a hook and extension shaft.

View Data Sheet

View User Manual

Features

• User friendly touch keypad & full-format 160×128 dot matrix LCD (2.8 inch) backlit display with display update rate of 10 times per second
• Accuracy = +/- 0.2% F.S.
• Overload capacity = 150% of F.S. (LCD blinks beyond 110%)
• Compact and durable metal housing
• Selectable units of N, gf, kgf, ozf, and lbf
• Supplied with a selection of measuring heads
• Easily mountable to an external frame
• Automatic display inversion depending on orientation
• Mechanical overload protection
• Includes USB charging cable
• RS232 communication and alarm output port
• Suitable in operating environments of -10 to 40C and relative humidity of 20-80%
• 1000 data memory
• Includes 3.6VDC 800MAH Ni-MH rechargable batteries with approx. 14 hours per charge
• Supplied in a hard plastic case to house all accessories
• Dimensions (mm) = 145 x 75 x 35 (digital gauge), 285 x 120 x 60 (in case)
• Weight in grams = 700 (gauge only), 1200 (in case)
