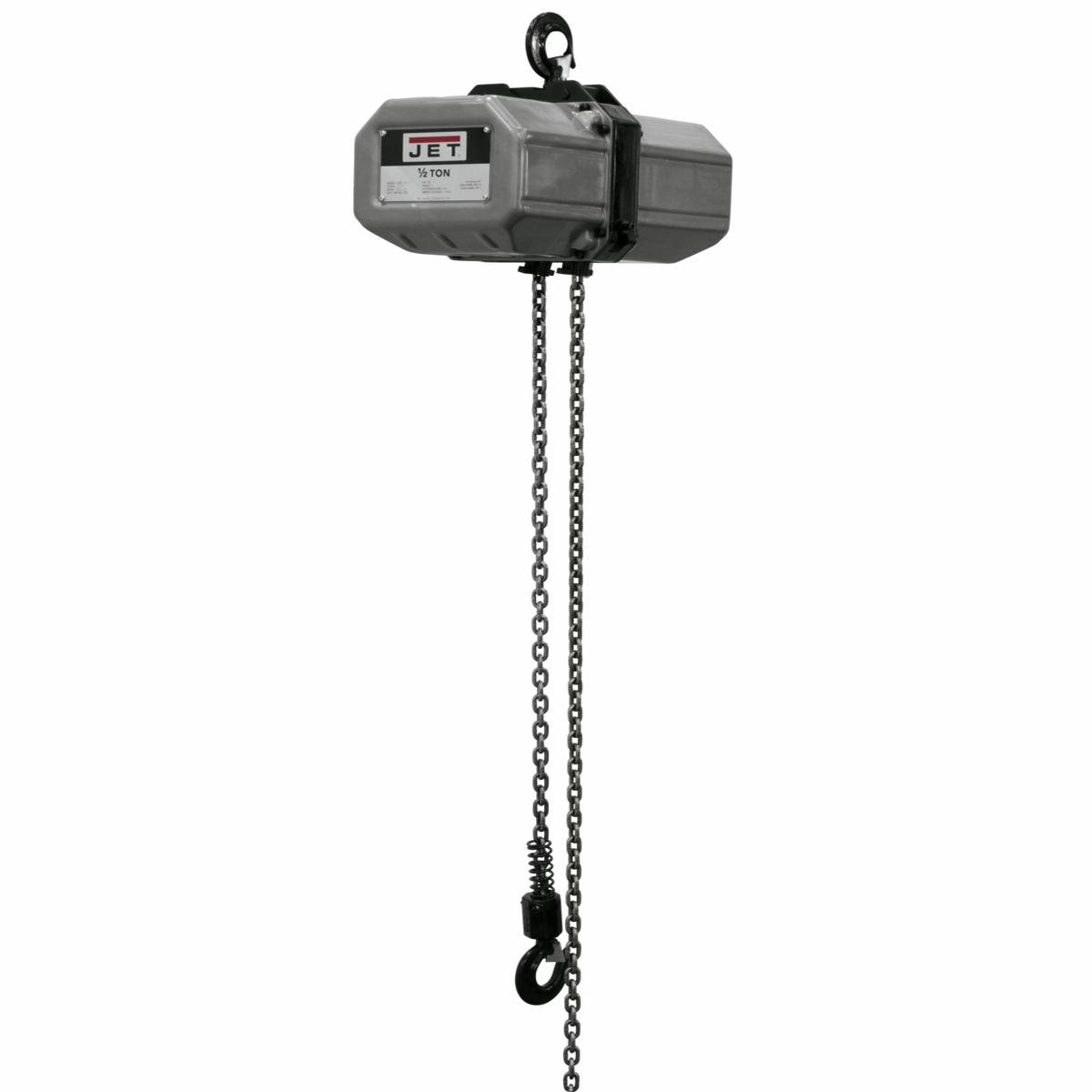

121150, JET 1/2SS-1C-15 1/2-Ton Electric Chain Hoist W/ 15′ LIFT 1PH

JET SSC Series Electric Hoists combine safety and durability to operate in commercial and industrial applications. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They are available in single or three-phase configurations to suit your electrical needs. Single-phase models have a thermal overload protection design that keeps the hoist from overheating, while the three-phase models feature a reverse phase relay that protects the hoist from incorrect wiring. The industry-proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability. The JET SSC Series Electric Hoist is available in 1/2-Ton to 5-Ton capacities with standard lifts of 10, 15, 20, 30, 40, 50, and 60 feet (custom lifts available).

Features:

• 24-volt push button controller with cable strain relief system for durability and reliability
• All steel construction
• NEMA 4X compliant push button control pendants
• Durable powder coat finish
• Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
• Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
• Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep
• Thermal overload protection

Specifications:

• Stock Number: 121150
• Capacity (Lbs.): 1000
• Duty Cycle (%): 25
• Duty Cycle Rating: H3
• Lift (Ft.): 15
• Lifting Speed (FPM): 19
• Load Capacity (Tons): 1/2
• Max. Number of Starts (Per Hr.): 150
• Max. On-Time (Min. / Hr.): 15
• Motor (HP): 7/8 HP, 115 / 230V, 1 Ph
• Motor Phase: 1
• Overload Protection: Yes
• Prop 65: Cancer and Reproductive Harm
• Weight (Lbs.): 106
• Headroom (In.): 20-3/16
• Overall Width (In.): 10.24
• Motor Current (Amps): 8
