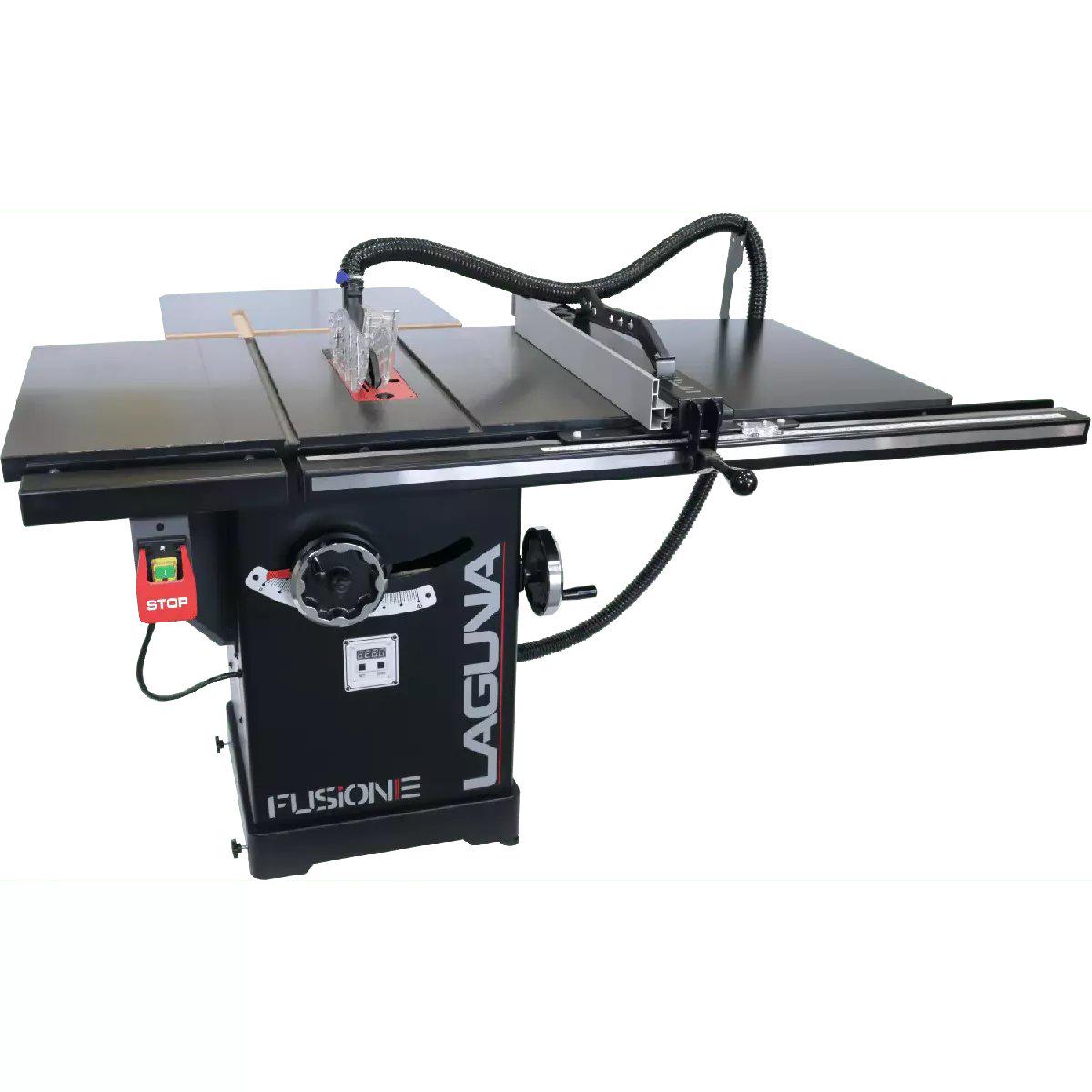

The new Laguna Fusion Table Saws are unlike any saw on the market. Having the same quality demands earned through the original fusion table saw, the new fusion line will not only impress but exceed the expectations you have come to expect from Laguna. With a completely redesigned trunnion and arbor controls that focuses on buttery smooth controls and longevity of the saw, we are sure this is the saw that will give you the perfect rip cut for many many years.

Features

• 3HP TEFC Motor
• 220V, Single-Phase, 60Hz Power Requirement
• Fusion Dust Collection System
• Industrial Cabinet, Fence & Trunnions
• Included Tools, Tables & Integrated Tool Storage
• Included 10 x 60T Carbide-Tipped Blade

Specifications

• Motor Plate 3 HP, Single Phase, 3450 rpm
• Power Requirements 220v, 15 Amp, 30 Amp Service
• Overall Dimension39-3/4L x 65-1/2W x 38H
• Footprint20L x 20-1/2W
• Shipping Dimensions 29-3/4L x 46-5/8D x 42 5/8H
• Shipping Weight 370 Lbs
• Rip Capacity 36″
• Cutting Material: Wood
• Max. depth of cut @ 90 3 1/8
• Max. depth of cut @ 45 2 1/8
• Blade Capacity 10 Diameter, thin kerf 13/16 dado stacks
• Blade tilt 0 45 Left
• Mitre Slots 3/4 with 1 T
• Arbor Size 5/8
• Arbor Speed 4500 rpm
• Dust collection 4 Outlet, 500 CFM REQ
