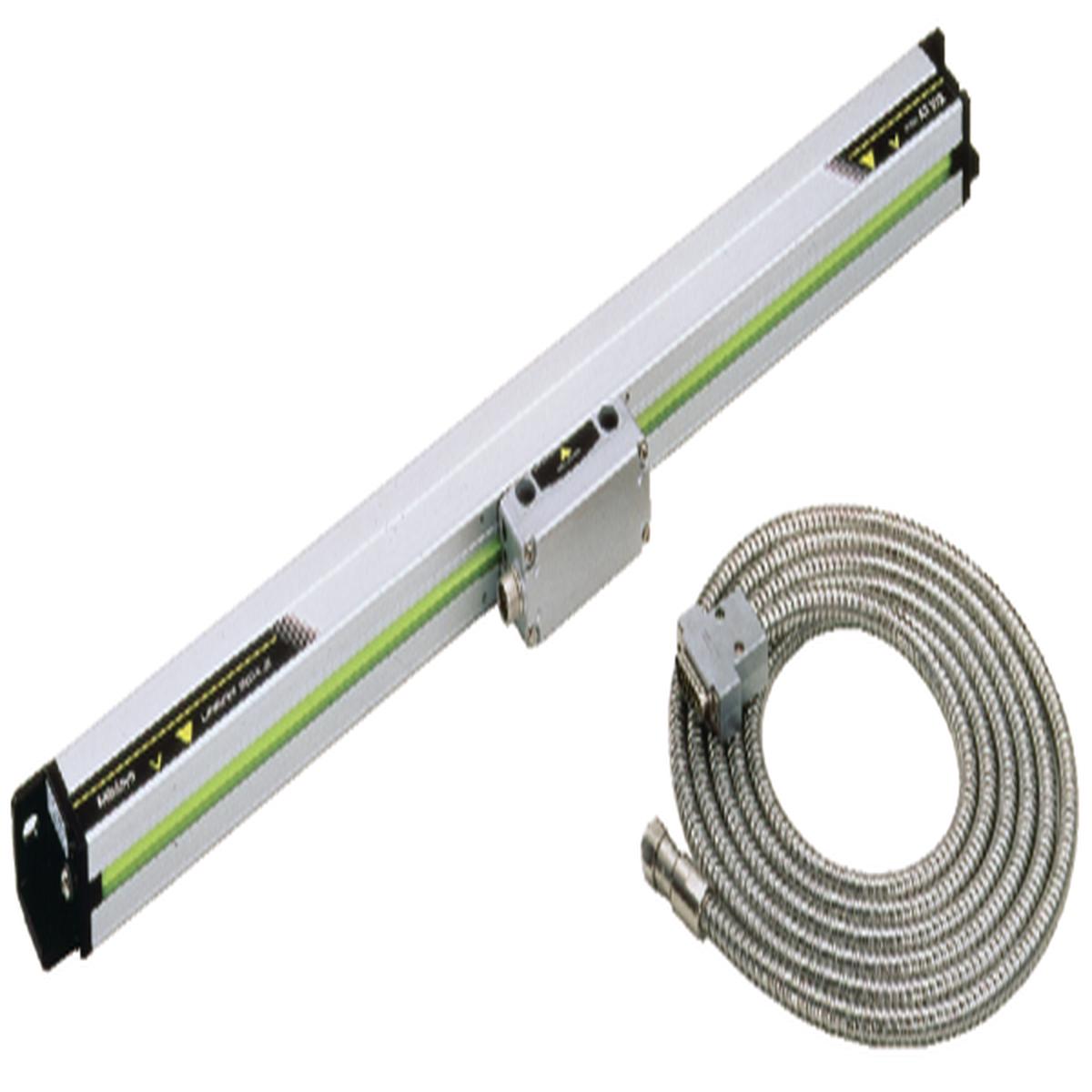

Linear Scale AT103 1800mm 539-135-30
Linear Scale AT103 1800mm 539-135-30
These linear scales offer : Sturdy construction-high resistance to vibration-protection rating are similar in upright and reclining positionThe innovative rubber lips keep out contaminants when you are using the scale in a machine shop.An armoured signal cable is used to...
These linear scales offer : Sturdy construction-high resistance to vibration-protection rating are similar in upright and reclining position
- The innovative rubber lips keep out contaminants when you are using the scale in a machine shop.
- An armoured signal cable is used to connect the scale unit to the DRO counter, so you can operate it safely even in hostile environments.
- The signal cable outlet can be positioned on either side of the slider so you can connect the signal cable from either direction.
Specification
| Accuracy: | 100 to 3000 mm (5+5L/1000) m 3250 to 6000 mm (5+8L/1000) m L = Effective range (mm) |
| Output waveform: | Two 90 phase-shifted sinusoidal signals |
| Max. drive speed: | 120 m/min. |
| Signal period: | 20 m |
| Scale reference points: | every 50 mm |
| Dust/water protection level: | IP53 |
| Cable length: | 5 m |
| Effective Length: | 1,800 mm |
| Mass: | 5.5 kg |
