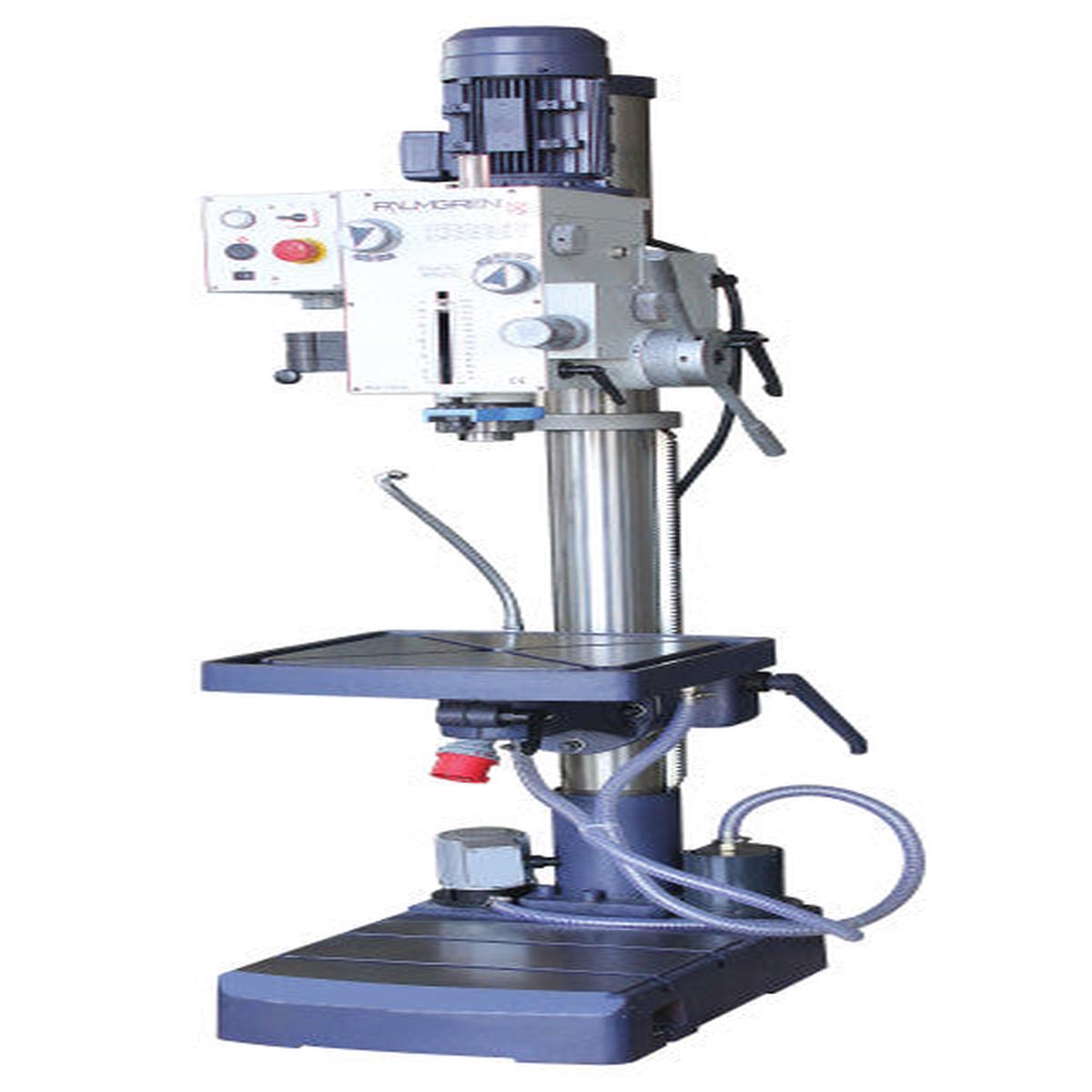

9680212, Palmgren 22in Gear Head DrlPrs 2HP 240V

Ruggedly constructed Palmgrens 22 gear head drill press delivers full power at any speed and has the operational features to withstand continuous industrial use. This heavy duty drill press uses a mechanical clutch system for the power feed and is built to handle all you drilling, reaming, chamfering, tapping, spot facing and counter boring applications with ease.

Features:

• Spindle gear box is equipped with hardened and ground steel gears and shafts lubricated on a continuous oil bath for long term quite, smooth operation
• Includes Chuck and Arbor Safety Drill Guard Halogen Work Light Tool Ejector Coolant System
• Flood coolant system
• Safety electrical package with emergency push button stop switch, 24 volts at the switch and interlocking chuck guard
• 4.5 column provides maximum head, table and base support and stability
• Front mounted dial adjusted work stop
• T-slotted production table and base
• Rack and pinion head and table raiser system
• Fine feed wheel for small hole and finishing operations
• Mechanical clutch spindle power feed
• Forward & reverse spindle switch
• Front mounted control panel designed for operator convenience
• Fully enclosed machine tool ground spindle with internal 4 MT mounted in precision bearings for maximum accuracy, minimizing deflection

Specifications:

• Product Height (inches) 80
• Product Length (inches) 28
• Product Width (inches) 23.5
• Product Weight (lbs) 715
