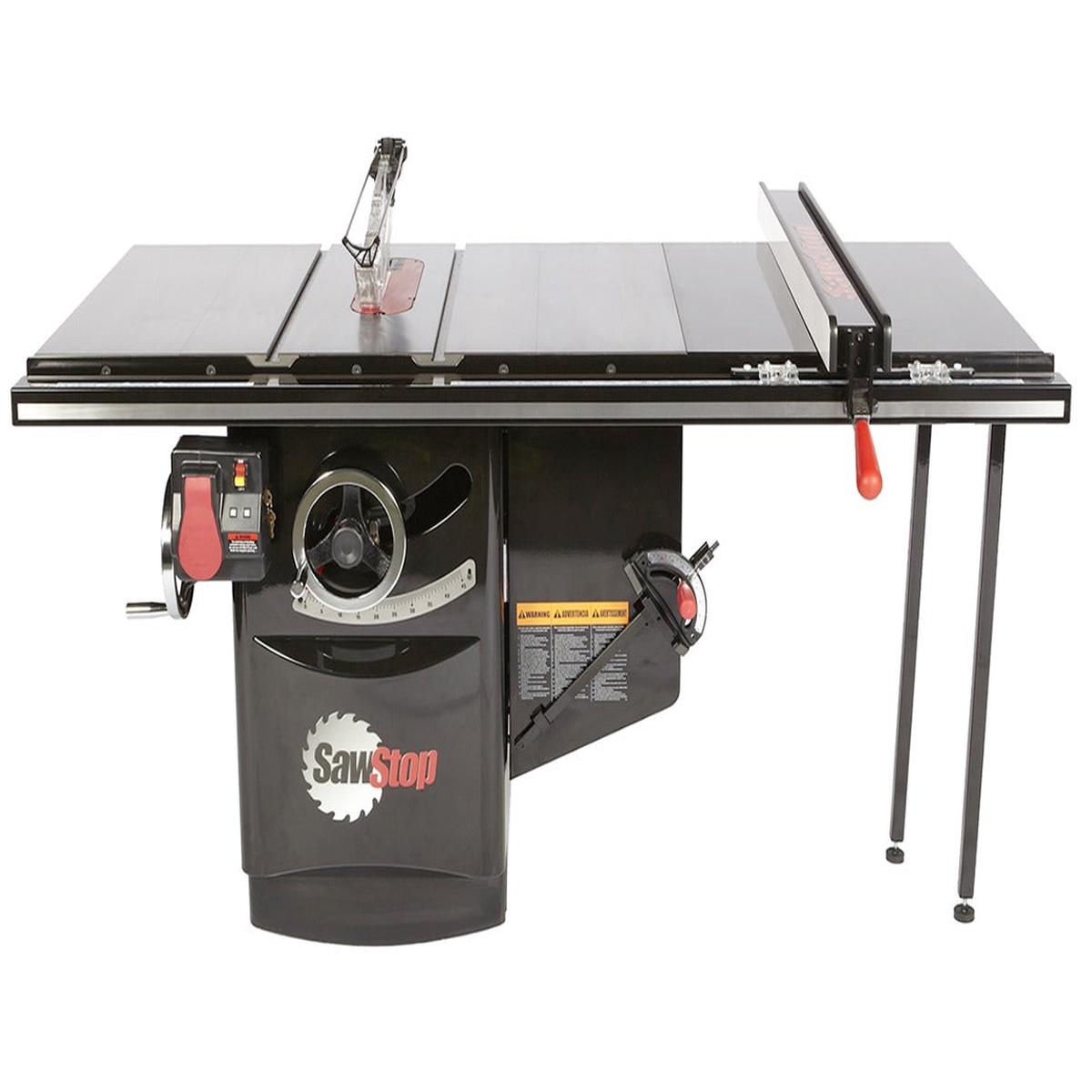

SawStop Industrial Cabinet Saw 5HP 3ph 36″ – ICS53230-TGI236

Designed for high-demand production shops and serious craftsmen, the SawStop Industrial Cabinet Saw 5HP 3ph 36″ is the ultimate cabinet saw. A powerful 5HP 3ph 230v 60Hz motor drives a 36″ rip capacity through the T-Glide fence assembly, while the SawStop safety brake stops and drops the blade in milliseconds if it contacts skin. With heavy iron, precision machining and industry-leading dust collection, this saw sets the benchmark for accuracy, durability and user protection.

Why Choose This Saw

• Patented safety system stops the blade and retracts it below the table in about five milliseconds to minimize injury
• Massive industrial trunnion with the thickest arbors and gas-piston assist provides silky smooth vertical travel and long-term durability
• Durable open gearing with poly V-ribbed belts ensures efficient power transfer with minimal vibration and prevents dust compaction
• Nearly 700 pounds of iron and steel and a thicker cast-iron top reduce vibration and provide rock solid stability
• Proven 99 percent dust extraction captures debris above and below the table by shaping blade-generated turbulence
• Industrial cabinet design features thicker steel panels, larger hand wheels, bigger access doors, and lock-out/tag-out switches for professional safety
• Wide range of motor options up to 7.5 horsepower in single- or three-phase to suit any shop requirements
• Quick setup and unmatched fit and finish makes this the flagship SawStop saw designed for demanding professionals
• 5-year motor warranty and 2-year saw warranty provide peace of mind
• Heavy-gauge steel rails and widely spaced glide plates provide smooth travel and precise measurement along the table
• Precision alignment system allows micro-adjustments of blade and table alignment for unmatched accuracy
• Rugged construction eliminates deflection and locks down solidly for repeatable cuts

Specifications & Included Equipment

• Motor choices: 3 HP, 5 HP or 7.5 HP in 1- or 3-phase, 230 or 480 V
• Rip capacities: 36 or 52 inches depending on fence configuration
• Cast iron table: 24 x 30 inches plus 10 x 30 inch extension wings for extra workspace
• Overall dimensions: 44 inches wide x 34 inches deep x 34 inches high (saw only), with up to 85 inch width including fence
• Table saw weight: approximately 530-685 lb depending on fence and motor
• Blade: 10-inch professional grade with 5/8-inch arbor; maximum cut depth 3-1/8 inches at 0 degrees and 2-1/4 inches at 45 degrees
• Miter slots: 3/4 inch top with 1-inch bottom, 3/8 inch deep; rip left of blade: 12-1/2 inches
• Dust port: 4 inch; dado capacity: 8 inches with up to 13/16 inch width
• Motor configuration: 5HP 3ph 230v 60Hz
• Rip capacity: 36″
• Fence assembly: T-Glide
• Model/part number: ICS53230-TGI236
