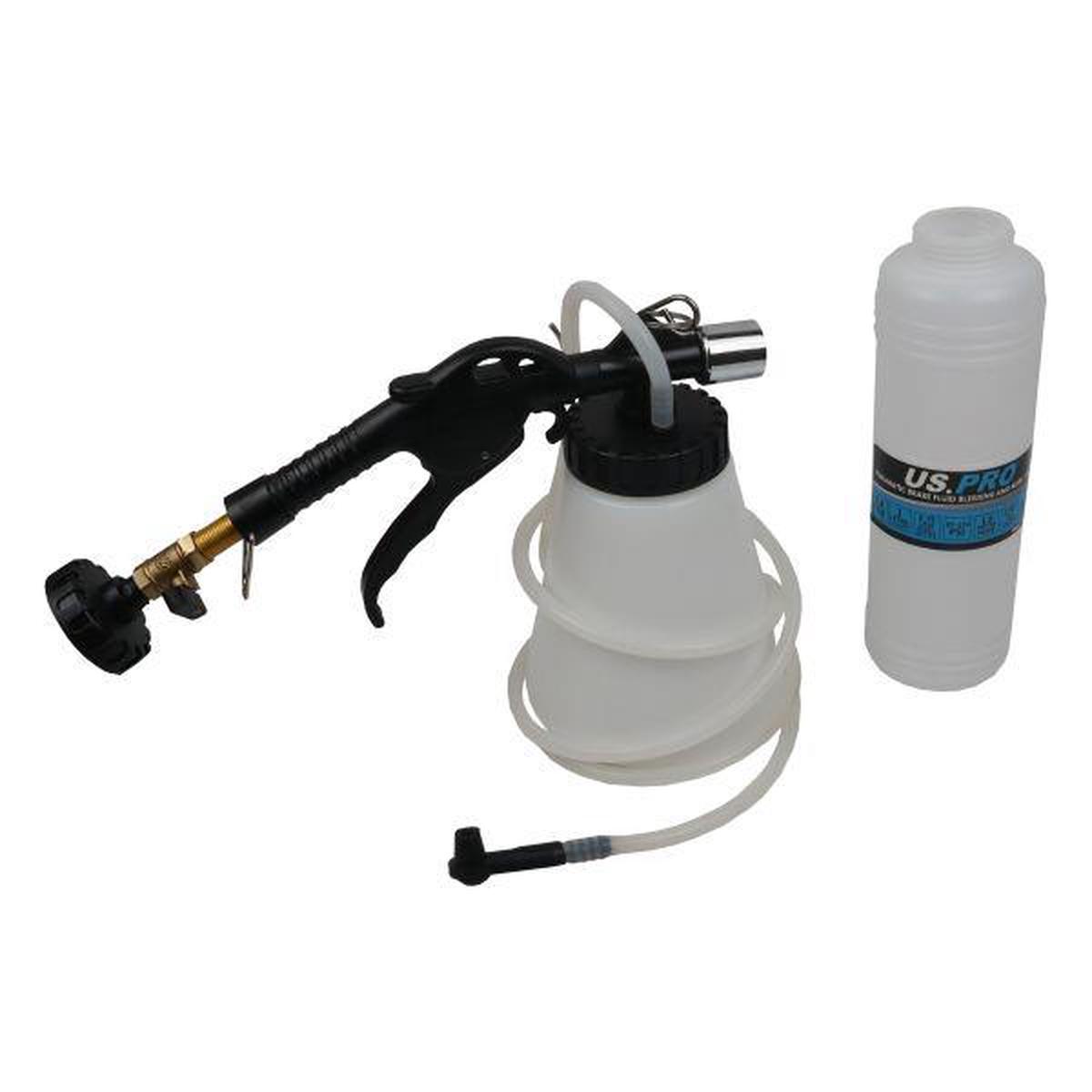

This pneumatic brake fluid bleeding and refill system is designed for bleeding, flushing and replacing brake fluid quickly and efficiently.

It allows easy one person operation using a standard workshop air supply, with a trigger to control fluid flow.

The system works by drawing fluid from the bleed nipple, allowing either bleeding or complete fluid replacement without the need for specialised brake reservoir caps.

A refill bottle is included to maintain fluid levels during operation, helping to reduce the risk of air entering the system.

Key Features:

• Pneumatic brake fluid bleeding and refill system
• One person operation
• Trigger controlled fluid flow
• No special reservoir caps required
• Suitable for bleeding, flushing and refilling

Specifications:

• Main reservoir capacity: 1 litre
• Refill bottle capacity: 0.75 litre
• Hose length: 1.8 metres
• Operating type: Pneumatic (air powered)
• Working pressure: 6-12 bar (87-174 psi)
• Negative pressure: 60%
• Air consumption: 180 litres per minute (6.4 CFM)
• Air inlet: 1/4″ (fitting included)
